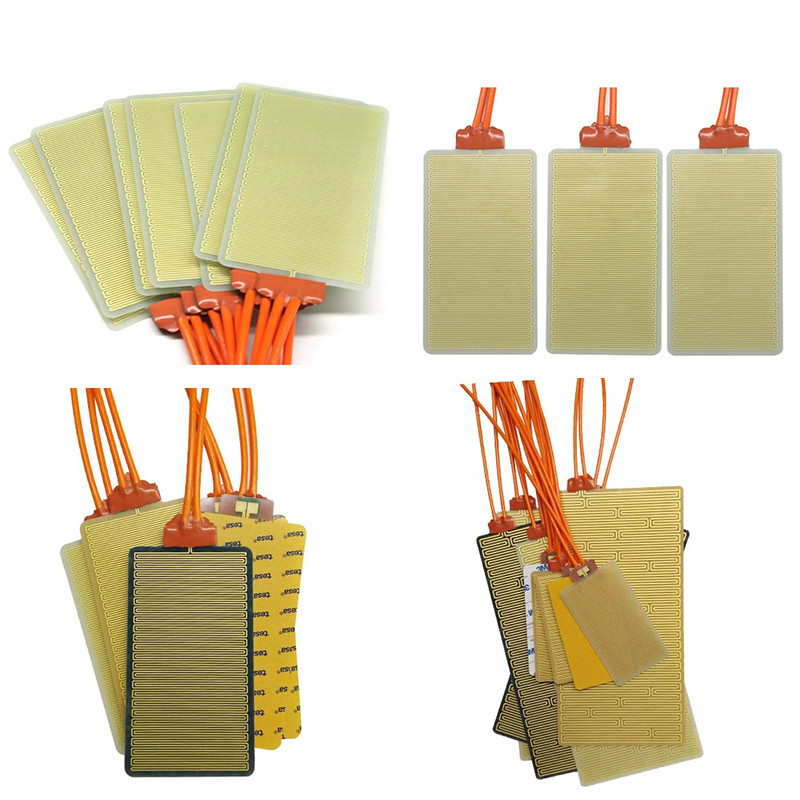

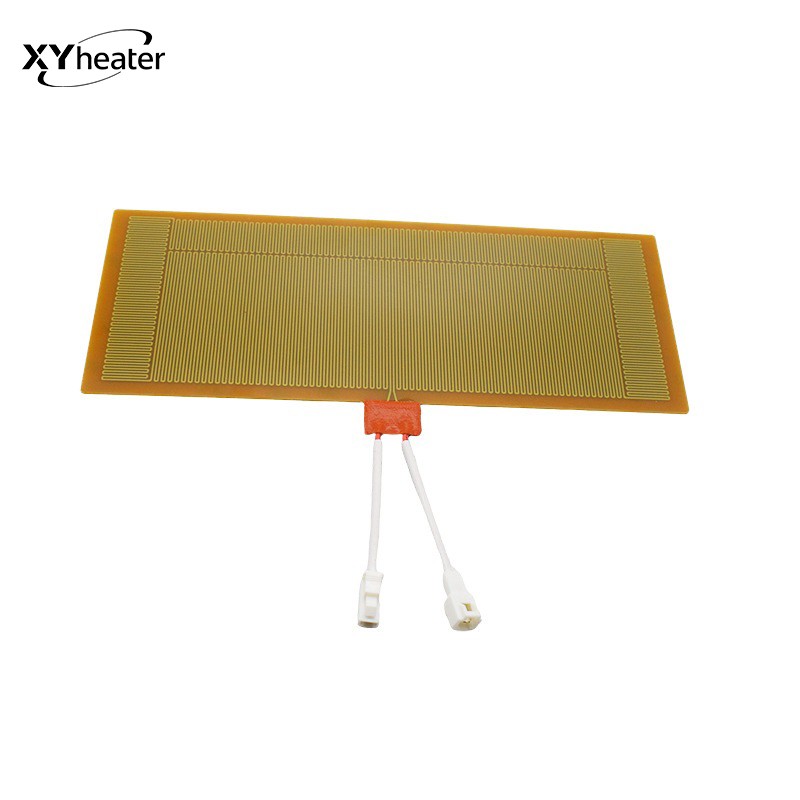

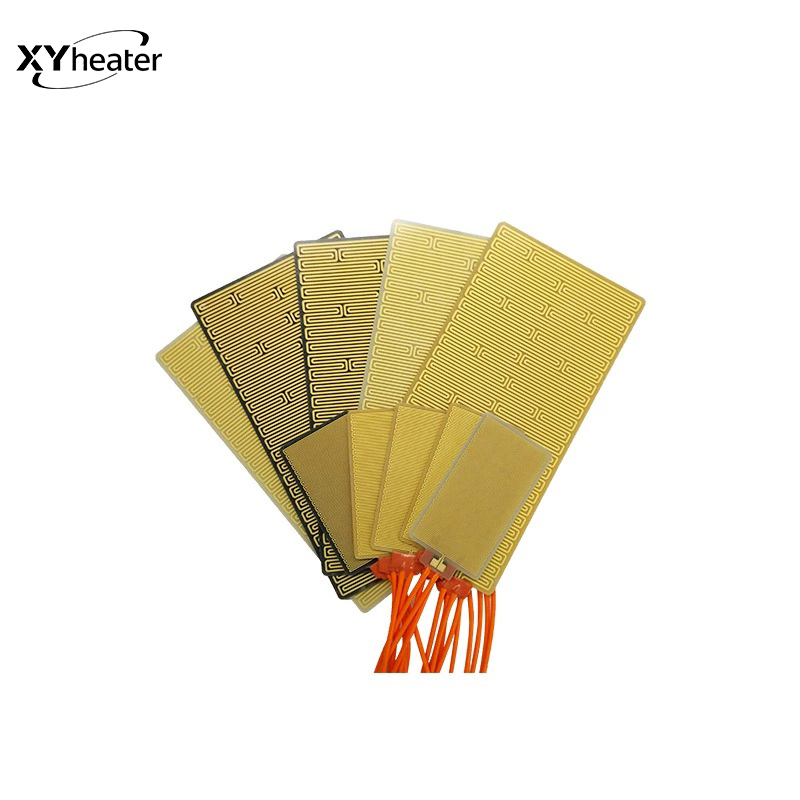

Epoxy Resin Heating Plate

Epoxy Resistor Heating Plates use epoxy resin as the insulator and metal foil/nano paste as the internal conductive heating element. They are formed through high-temperature thermal lamination. These plates feature excellent dielectric strength, voltage resistance, thermal conductivity rate, and resistance stability. The newly developed epoxy heating film/plate products have been widely applied in the field of electric heating.

Applicable temperature control accessories:

1) adjustable digital display temperature control (-50~200C)

2) EGO adjustable knob temperature control

3) PT100 or PT1000

4) thermistor

5) type K, type J, type E thermocouple temperature line

Dustproof and waterproof grade:

1) welding place of power cord: IP 65

2) epoxy resin heating plate itself: IP68

Installation mode:

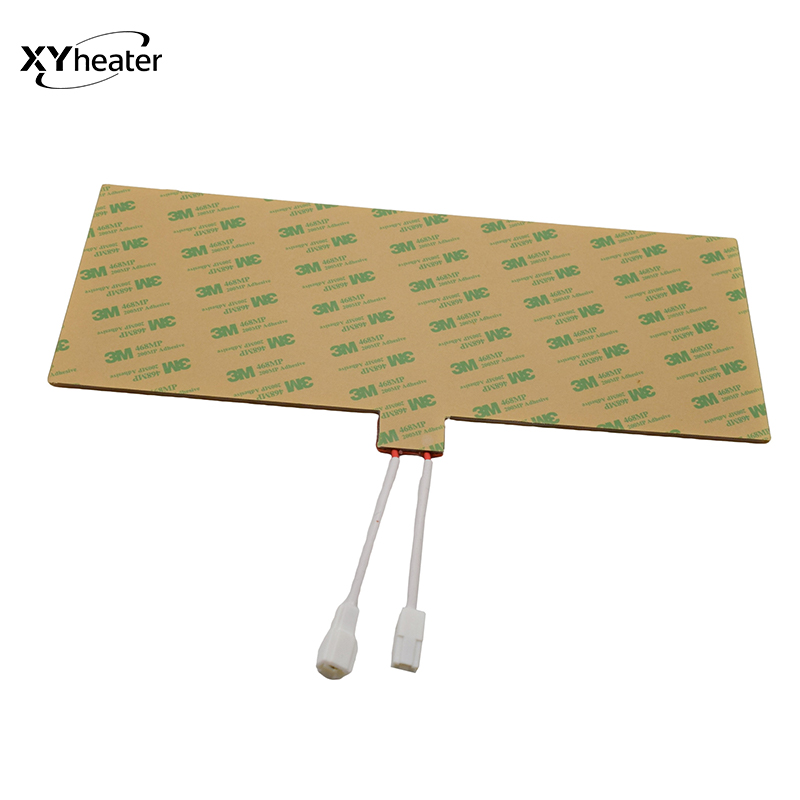

1) strong resistance to pressure and adhesion of high and low temperature double-sided adhesive, such as 3M PSA

2) screw the hole bolt

3) aluminum plate with cover clamping pressure
