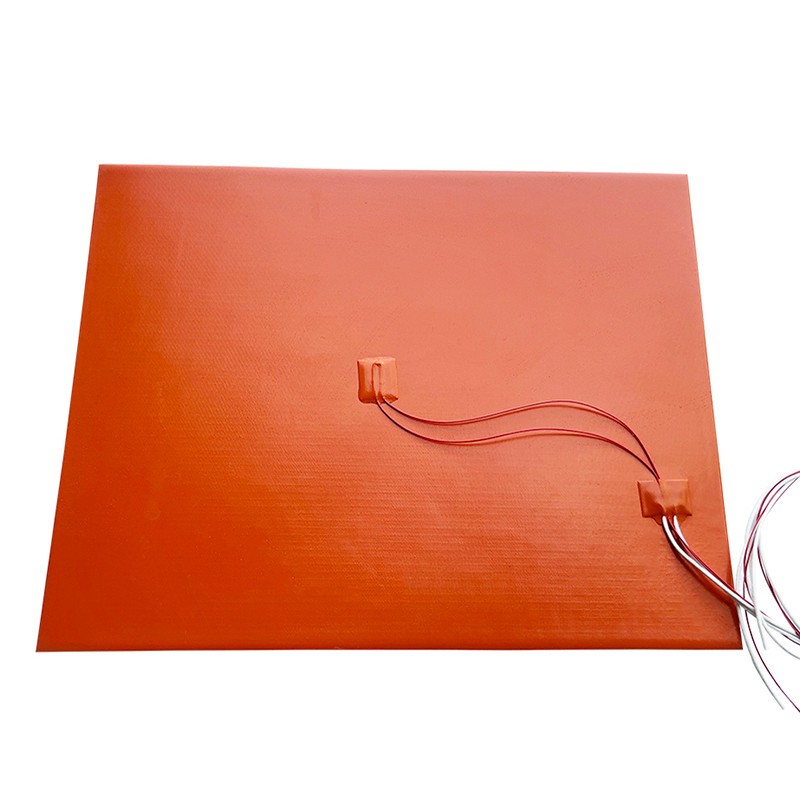

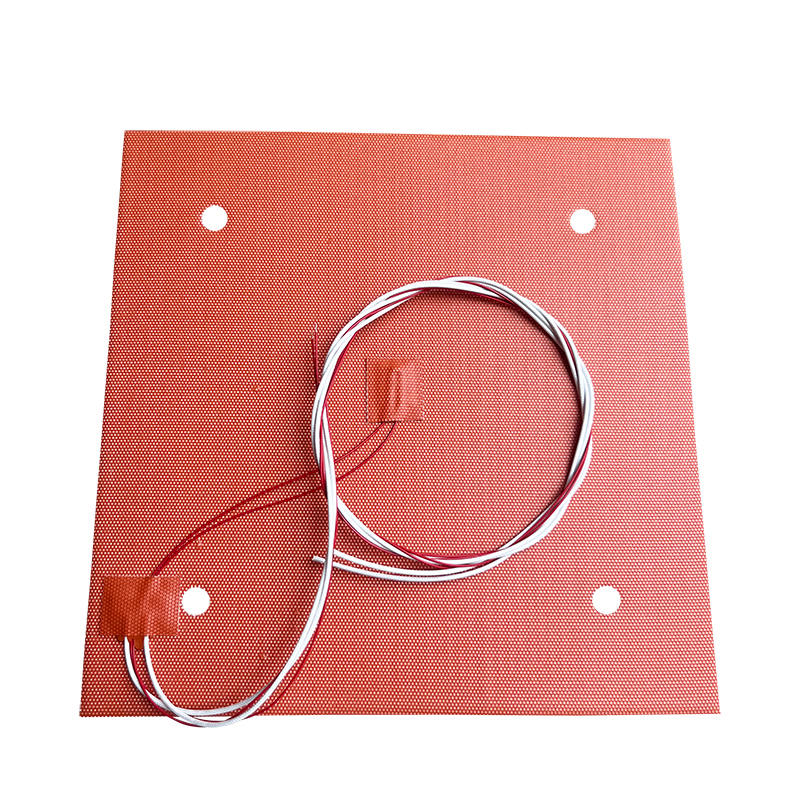

Square Silicone Heater

Maximum Watt Density: 12 W/in²
Maximum Operating Temperature: 482°F (250°C)
Minimum Operating Temperature: -70°F (-56.6°C)
Wattage Tolerance: ±10%
Dielectric Strength: 1000 VAC
Certificate: CE, UKCA, RoHS, UL(for all raw materials)

Product Description:

Silicone rubber heaters provide dependable performance under rigorous conditions. Ambient temperatures down to –80°F and up to 500°F do not diminish performance. These heaters can be designed and fabricated in many configurations to fit the size and shape of almost any application requirements.

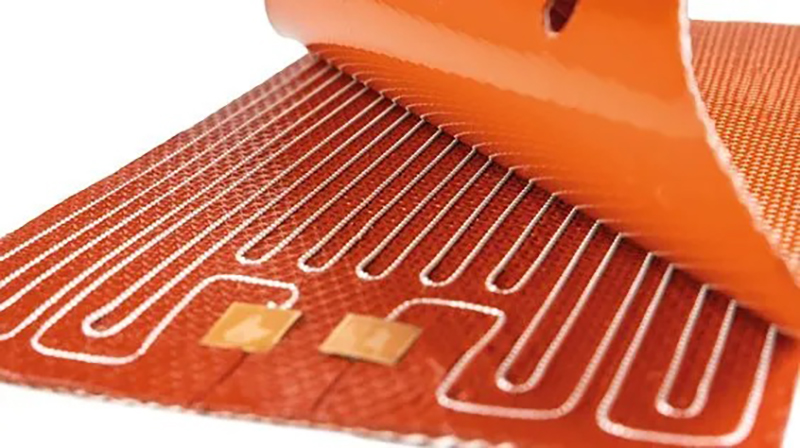

1) Wire-Wound Silicone Heater:

1-1) Silicone rubber heaters feature an advanced Wire-Wound Element, ensuring precise and uniform heat distribution.

1-2) Crafted with high-quality resistance wire, this element provides efficient warmth across the entire surface, making it ideal for applications requiring consistent heating.

1-3) Its exceptional flexibility allows the heater to conform seamlessly to complex shapes. Engineered for durability, the Wire-Wound Element withstands challenging conditions, offering a reliable and long-lasting heating solution.

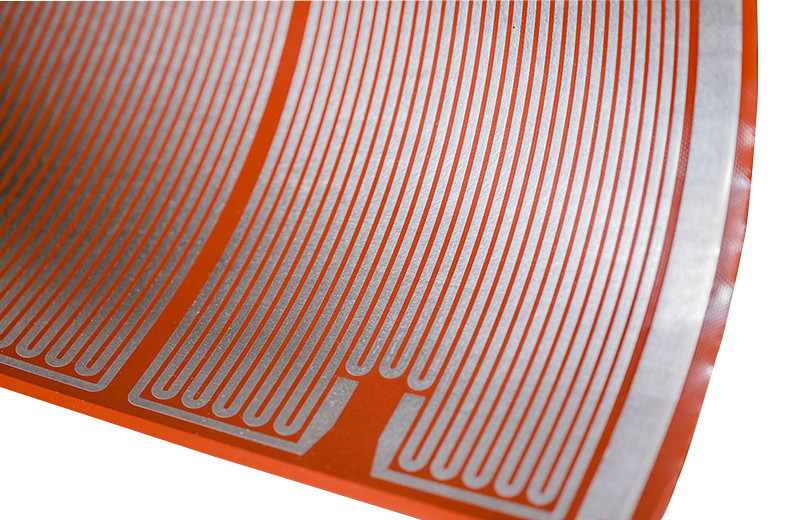

2) Etched Foil Silicone Heater

1-1) Silicone rubber heaters boast the innovative Etched Foil Element, setting new standards in precision heating. Characterized by its thin, flat design, this element ensures efficient and uniform heat transfer across the entire silicone rubber surface.

1-2) Its flexibility allows the heater to adapt seamlessly to complex shapes and contours, making it an ideal choice for diverse applications.

1-3) The meticulous construction of the etched foil enhances durability, providing resilience in challenging environments.

3) Features

Long life, high reliability
Versatile configurations – flexible for flat or curved installations
Able to withstand extreme ambient temperatures

4) Specifications of Silicone Rubber Heaters

Material:	Silicone rubber/imported silicone+metal wire
Size:	Customized(Min 10x10mm), no maximum length
Thickness:	1.5mm(±0.1mm) except at lead wire exit
Voltage:	Customized
Wattage:	12 W/in²
Lead wire:	1000mm teflon wire
Dielectric Strength:	1250 VAC
Maximum Temperature:	Heaters without pressure sensitive adhesive, 232°C (450°F); heaters with pressure sensitive adhesive, 180°C (356°F)
Minimum Temperature:	-56°C (-70°F)

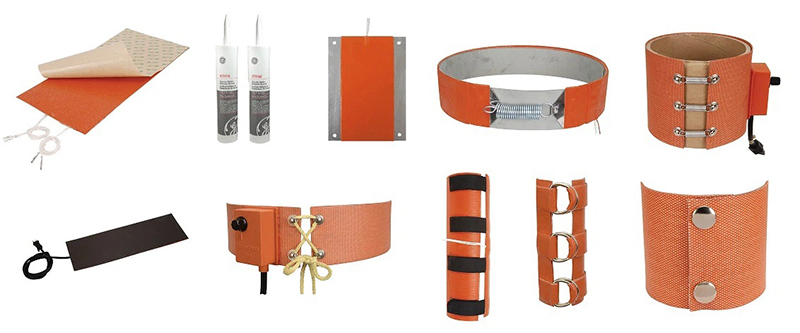

Installation:	Double side adhesive, Spring, Screw holes, Vercro and so on.....

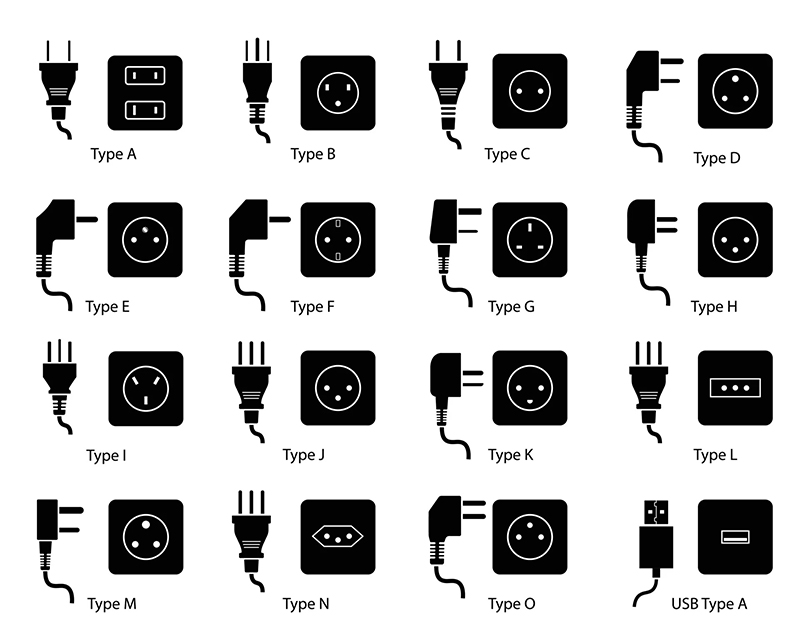

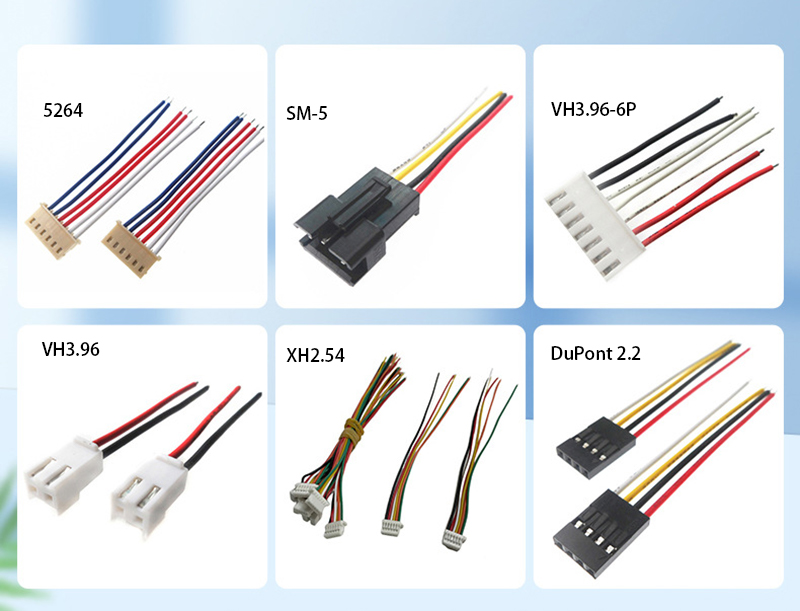

Power connection method:	Plug, Connector and so on...
