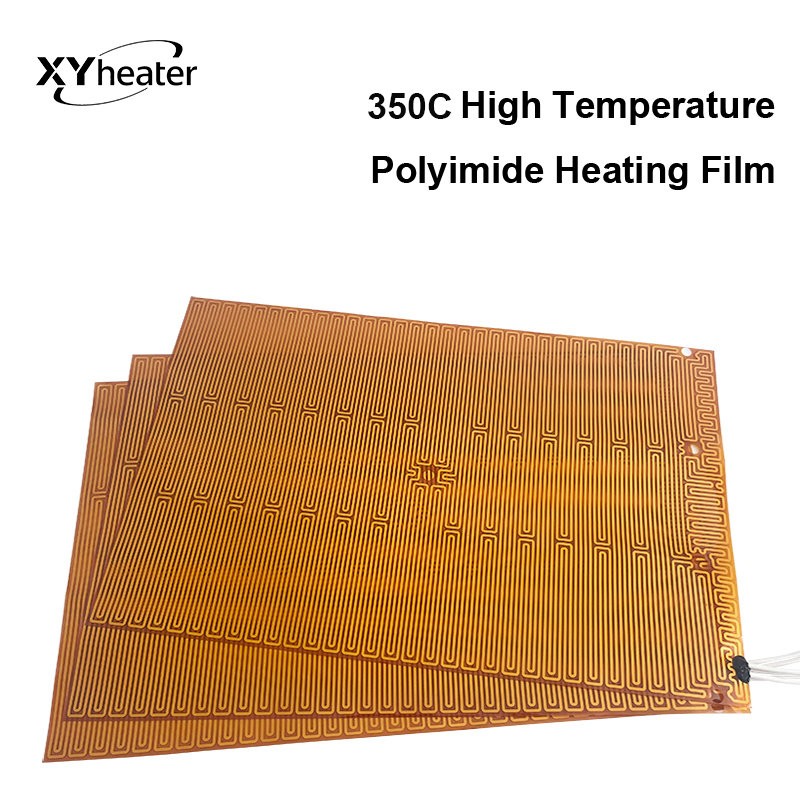

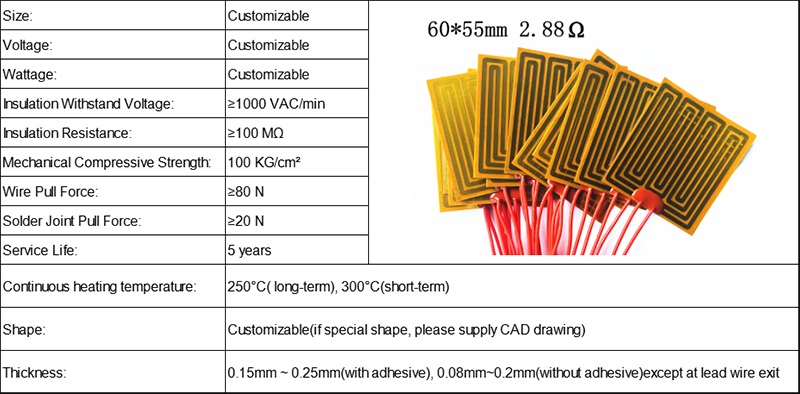

Max Temperature 350C Polyimide Heating Film

1. Insulation film: PI(Polyimide film)
2. Heating element : Aluminum, SUS304, Copper
3. Operating temperature range: -40-350°C
4. Size: Customized
5. Voltage: Customized
6. Wattage: Customized
7. Resistance Tolerance: As standard ±10% of nominal and down to ±3% available to special order
8. Temperature sensor: On board thermal fuse, thermostat, NTC Thermistor and K /J type Sensor are available
9. RoHS Compliance: Yes
10. UL-94 flame retardant : V0

Product Description:

Polyimide film heater is made of Polyimide film as the outer insulator of the heater. With etched foil or print the carbon slurry on PI film as an internal conductive heating body, through high temperature and high-pressure heating.

Excellent insulation strength; Excellent electrical strength; Excellent heat conduction efficiency; Excellent resistance stability.

This enables it to be widely used in the heating field and to obtain quite a high-temperature control accuracy.

Etched type PI Heating Film: The etched foil is the heating layer, vulcanized the polyimide film to be insulated layer.

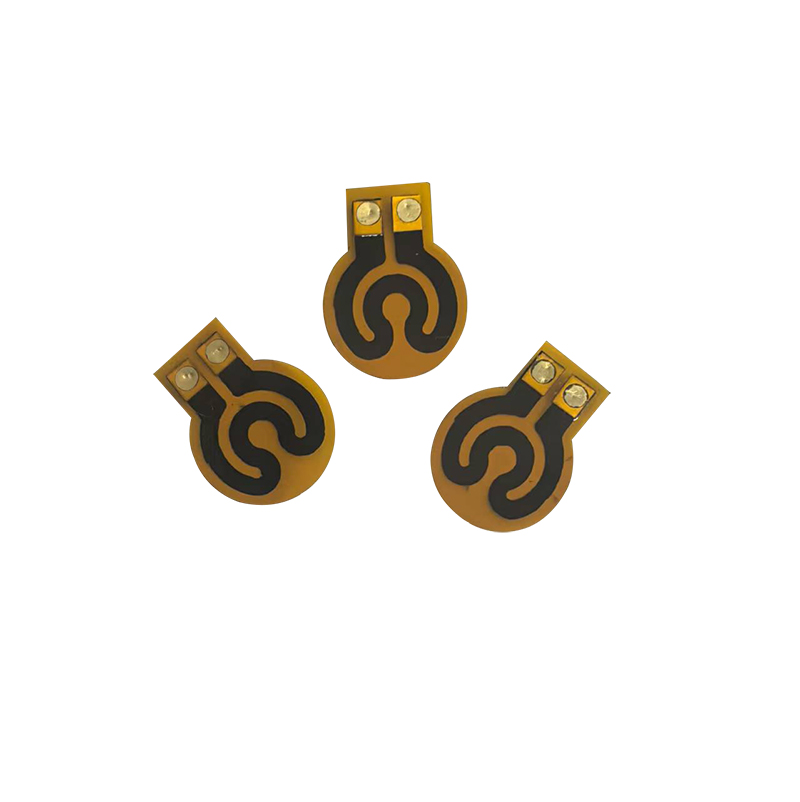

Printing type PI Heating Film:To print the carbon slurry on polyimide film to be heating layer, and vulcanized the polyimide film to be insulated layer。

Polyimide film heater applications:
