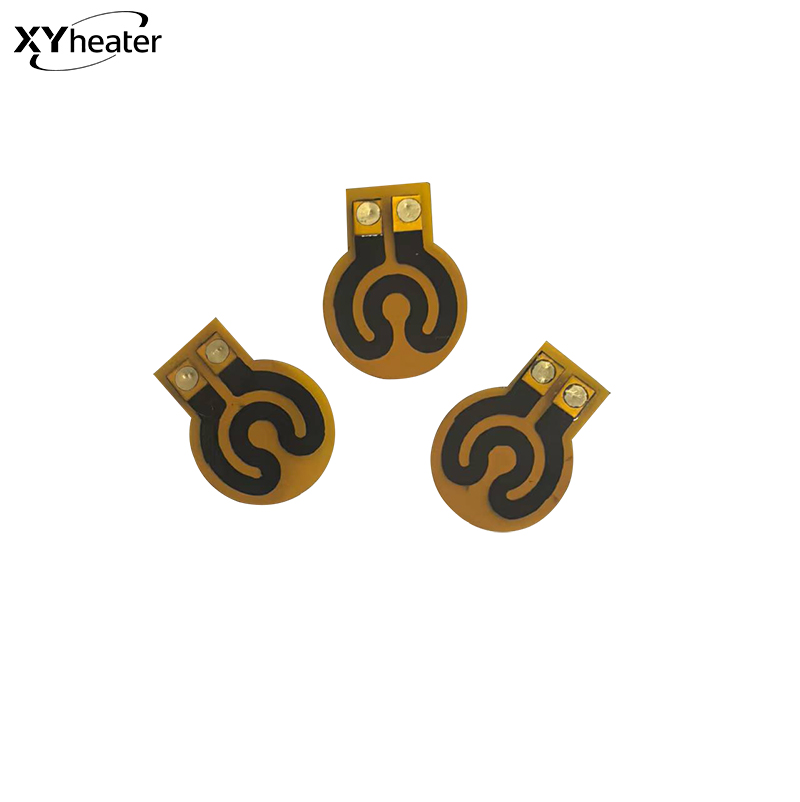

Polyimide Carbon Heating Film

1. Insulation film: PI(Polyimide film)
2. Heating element : carbon
3. Operating temperature range: -40-180°C
4. Size: Customized
5. Voltage: Customized
6. Wattage: Customized
7. Resistance Tolerance: As standard ±10% of nominal and down to ±3% available to special order
8. Temperature sensor: On board thermal fuse, thermostat, NTC Thermistor and K /J type Sensor are available
9. RoHS Compliance: Yes
10. UL-94 flame retardant : V0

Product Description:

Polyimide Carbon Heating Film is made of Polyimide film as the outer insulator of the heater. With carbon as an internal conductive heating body, through high temperature and high-pressure heating.

Excellent insulation strength; Excellent electrical strength; Excellent heat conduction efficiency; Excellent resistance stability.

This enables it to be widely used in the heating field and to obtain quite a high-temperature control accuracy.

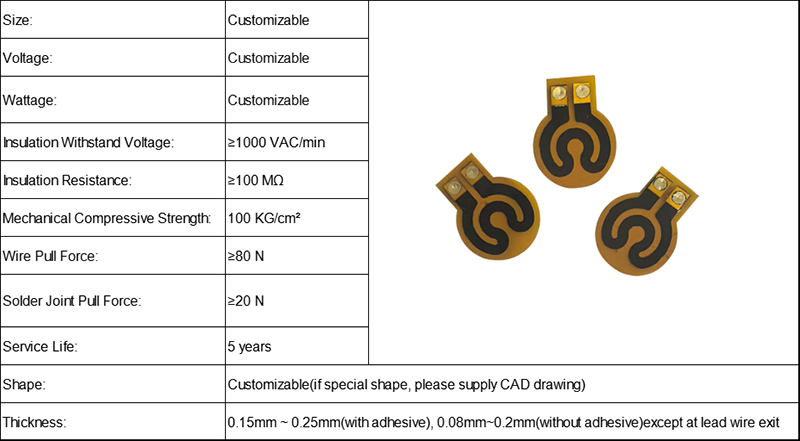

Specficications:
