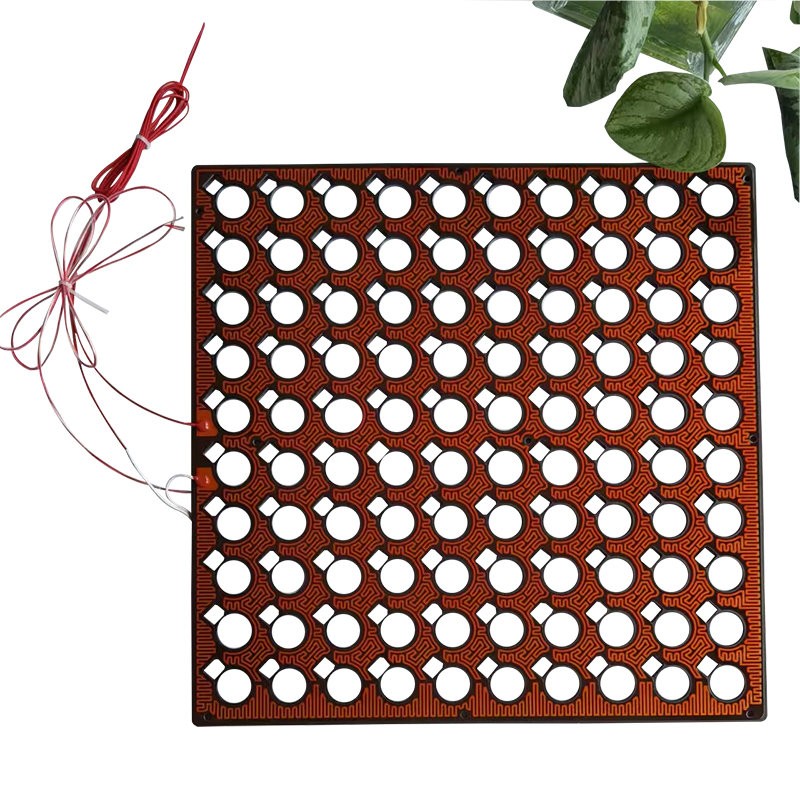

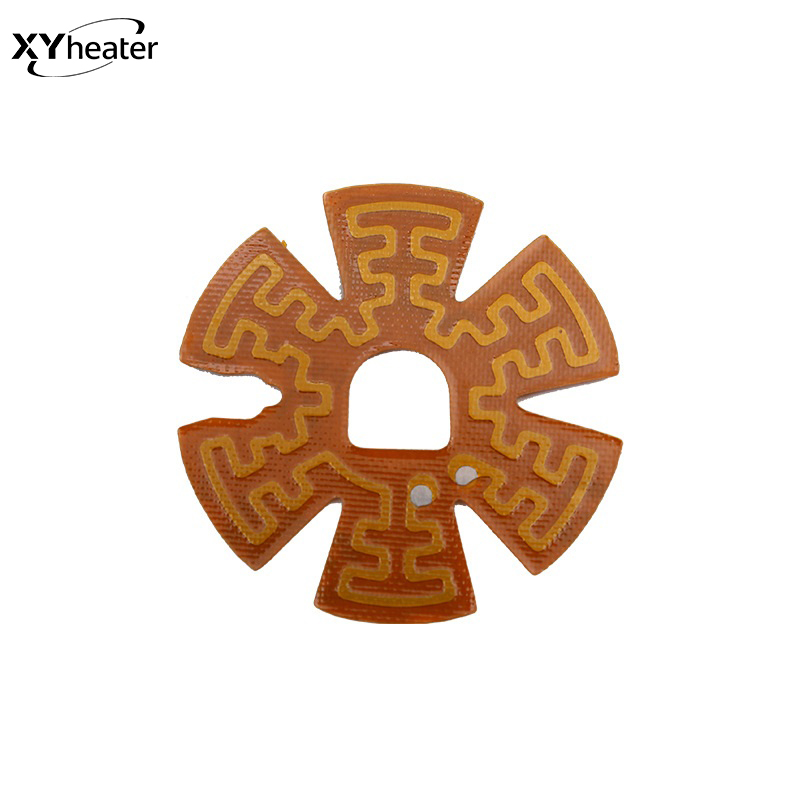

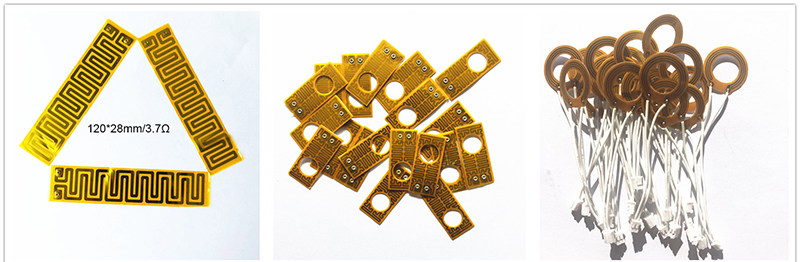

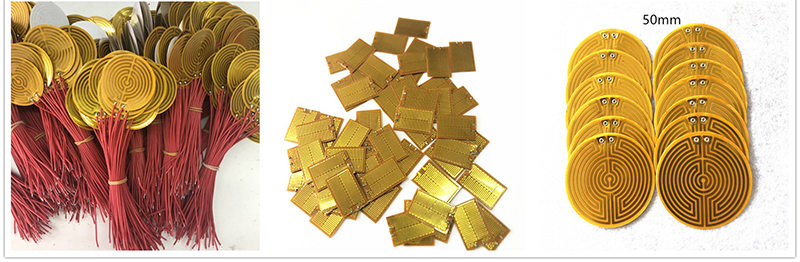

Special Shape Polyimide Heater

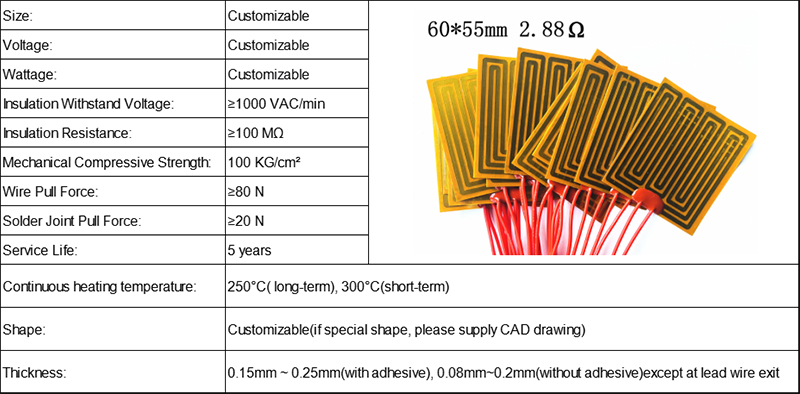

1. Insulation film: PI(Polyimide film)
2. Heating element : Aluminum, SUS304, Copper
3. Operating temperature range: -40-300°C
4. Size: Customized, Max 980x4800mm
5. Voltage: Customized
6. Wattage: Customized
7. Resistance Tolerance: As standard ±10% of nominal and down to ±3% available to special order
8. Temperature sensor: On board thermal fuse, thermostat, NTC Thermistor and K /J type Sensor are available
9. RoHS Compliance: Yes
10. UL-94 flame retardant : V0

Product Description:

Polyimide film heater is made of Polyimide film as the outer insulator of the heater. With metal foil, and metal wire as an internal conductive heating body, through high temperature and high-pressure heating.

Excellent insulation strength; Excellent electrical strength; Excellent heat conduction efficiency; Excellent resistance stability.

This enables it to be widely used in the heating field and to obtain quite a high-temperature control accuracy.

Polyimide film heater applications:
